150W/300W DC Electronic Load
Detail

 Technical Support

CKT8000 series DC electronic load is equipped with a 4.3-inch LCD display screen, which has the appearance of fashion generous and is easy to operate. With a wide range of power test, the electronic load has a voltage/current measuring speed of up to 40KHz, and the test resolution can reach 0.1mV/0.1mA. A variety of test functions and modes are available for choice. The load is equipped with RS232 interface, and the current-rising test speed is adjustable from 0.001 A/us to 2.5 A/us. The electronic load is stable and widely used to meet various test requirements.

SPECIFICATIONS


CKT8001   DC Electronic Load

CKT8003   DC Electronic Load

CKT8003+

DC Electronic Load

Input Rating

150W150V30A

300W150V30A

Customized

CC

0~3A, Resolution: 0.1mA,   Accuracy: 0.05%

0~30A, Resolution1mA,   Accuracy: 0.05%

CV

0~18V, Resolution: 1mV,   Accuracy: 0.05%

0~120V, Resolution: 10mV,   Accuracy: 0.05%

CP

0~150W, Resolution: 10mW,   Accuracy: 0.1%

100W,   Resolution: 0.01W, Accuracy: 0.1%

CR

0.05Ω~7.5kΩ, Resolution: 0.01Ω, Accuracy: 0.1%

100~4kΩ, Resolution: 0.1Ω, Accuracy: 0.1%

Dynamic Mode

T1&T2 : 100 μS~99.99 S / Res:100 μS

Accuracy: 5 μS±100   ppm

Rising/FallingSlope:   0.001~0.15A/μS

Short Circuit

Current 30A, Resistance 40mΩ

Transition

10 files, Frequency:   0.1Hz~1kHz

List Test

10 files,100 steps/file

Test File

10 files, 20 steps/file

Battery Test

Capacity: 999AH max

Interface

RS232C; Sense (remote   compensation) terminal; Current monitoring terminal; Trigger signal terminal

Software

data acquisition software

Protect

Five level Security protect

Others

4.3-inch color TFT display screen; Ripple measurement function; Cr-led test/time test; Support USB software upgrading; Intelligent fans   cooling

GENERAL FEATURES

Power supply

Voltage: 220V/110V AC   Frequency: 50Hz/60

Size

215 mm* 88.5 mm* 365mm    Weight: 4kg

ORDER   INFORMATION

Accessory

Test Cable; AC Power Cord

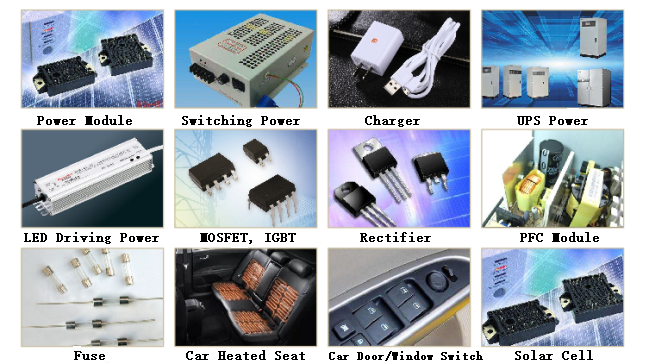

Application area:


Field
Testing Product
Testing Content
Power
power module, power supplier
performance test
voltage-stabilized power, constant current power, constant voltage power
performance test
switching power
performance test
charger
performance test
power for medical equipment
energy storage device test
Power for military industry, space equipment and research equipment
performance test
UPS power
energy storage device test
LED
LED driving power
Electrical parameters and stability test
Electronic components
of high power
MOSFET, IGBT
performance test
capacitor, rectifier
performance test
PFC module
performance test
Fuse
fuse
fusing time test
Automotive electronics
radio, car heated seat
judge working current
car door/window switch
stability and aging test
car central control box
stability and aging test
mobile phone battery
discharge test
battery
power battery
discharge test
solar cell
discharge, efficiency and other tests
portable power source
discharge test
