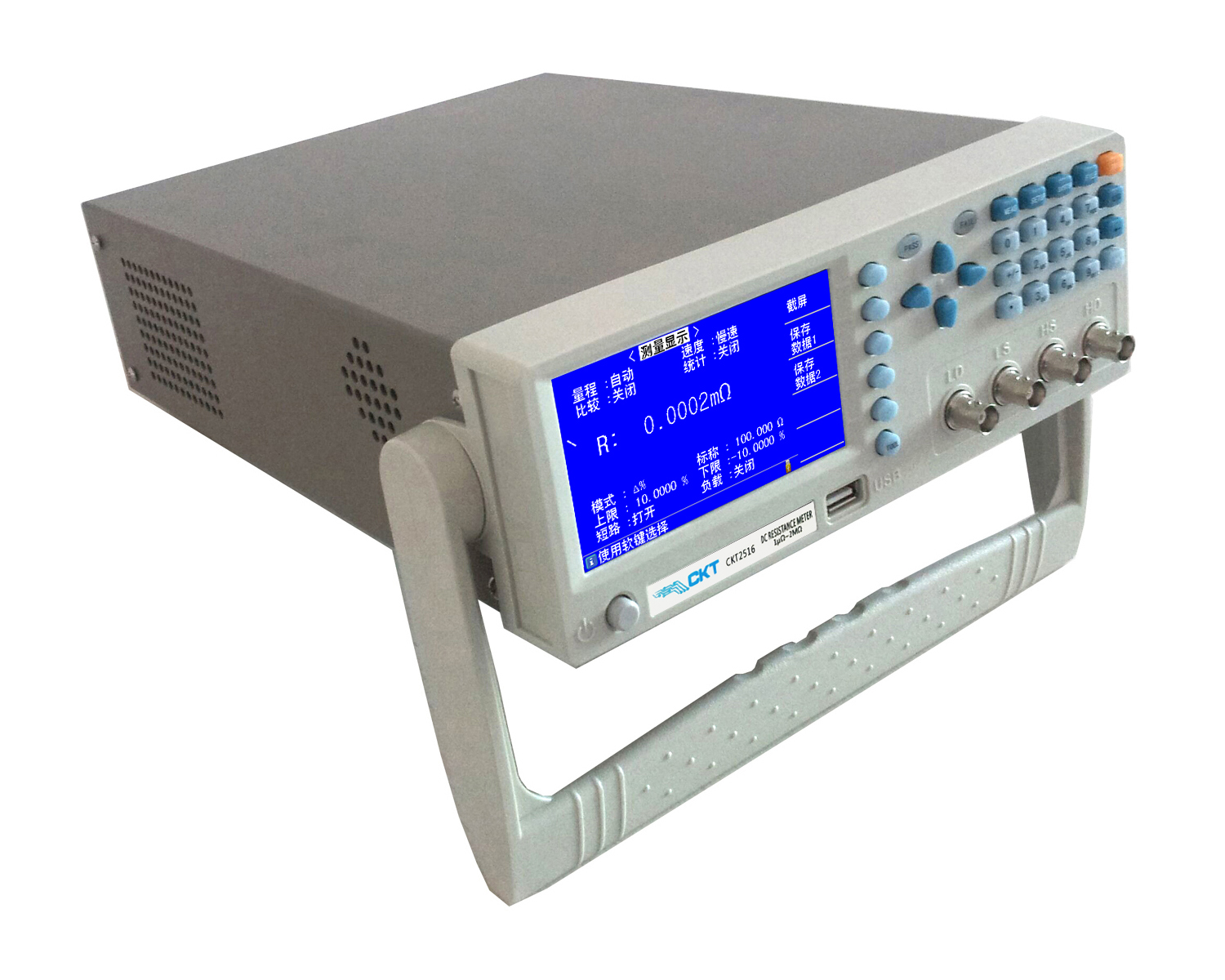

1μΩ~2MΩ Precision Resistance Meter
Parameters: DCR
Accuracy: 0.05%
Model: CKT2516B/CKT2516A/CKT2516
Detail

CKT2516 series DC resistance meter apply to various kinds of resistors, switches contact resistance, connector contact resistance, relay coils and contact resistance, transformers, inductors, motors, deflecting coiling resistance, welding contact conductor resistance, the metal riveting resistance of vehicles, boats, airplanes, printed circuit lines and crack detection and so on.


SPECIFICATIONS


CKT2516B/CKT2516A/CKT2516 DC Resistance Meter

Parameter

DC resistance

Accuracy

0.05%

Measurement   Range

CKT2516B:1μΩ~20 kΩ

CKT2516A:10μΩ~200 kΩ

CKT2516:1μΩ~2MΩ

Signal Source

Current range: 1mA~1A

Range

Automatic and manual

Speed

LineFreq:50Hz

FAST22msMED42 msSLOW102 ms

LineFreq:60Hz

FAST18.5msMED35 msSLOW102 ms

Above is the speed at which the display is closed.When the display is opened, need to add 10 ms.

Display

Show, ABS、△% and sorting result

Display   Max

10,400

Adjustment

Short-circuit correction for all ranges

Comparator

HI/LO/IN

Trigger

INTEXTSupport front panel TRIGGER, rear panel HANDLER, FOOT.C and bus trigger

Interface

USB DEVICEUSB HOSTRS232C、HANDLER

Test Terminal

4 terminal shielding (2 check terminal and 2   driving terminal) and external shielding ground section

Temperature Compensation

None

Display

24 true color, 4.3-inch, resolution of 480 x 272 LCD TFT

Other Function

Cable length test function (Optional)

GENERAL FEATURES

Power Supply

Voltage: 110V/220V   Frequency: 50Hz - 60Hz

Size and Weight

265mm(W*100mmH*340mm(L3.5kg

ORDERING INFORMATION

Accessories

Kelvin test clip

AC Power Cord
