Multifunction Process Calibrator
Model: CKT701
Detail

CKT701 Temperature calibrator has function of giving output signal of DC voltage, resistance, thermocouple and RTD, the calibrator is fast response and stable data. It is widely applied in instrument workshop, metrology room, and calibration laboratory, this is an ideal process calibration instrument.

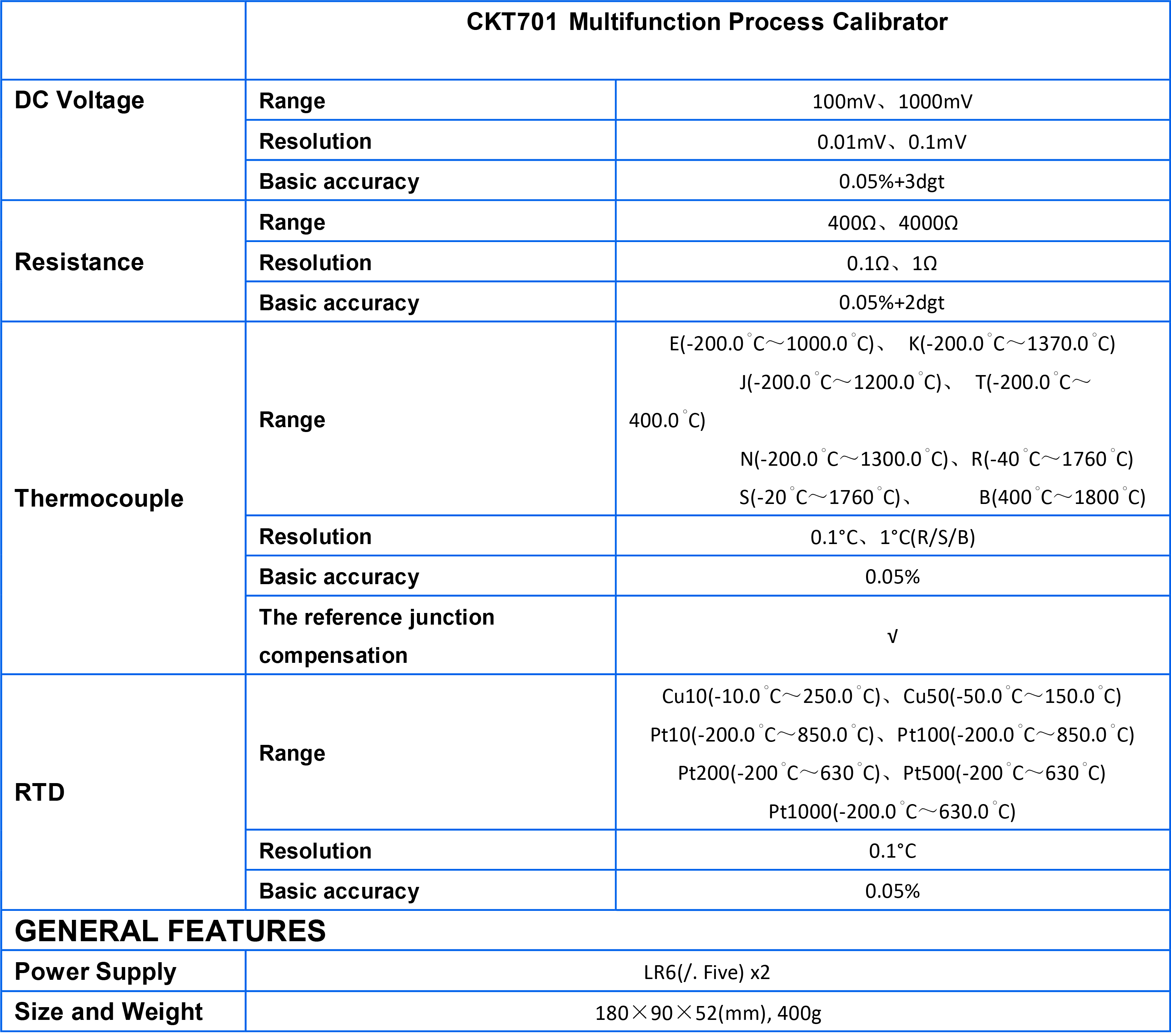

SPECIFICATIONS


CKT701Temperature Calibrator

DC voltage

Range

100mV1000mV

Resolution

0.01mV0.1mV

Basic accuracy

0.05%+3dgt

Resistance

Range

400Ω4000Ω

Resolution

0.1Ω

Basic accuracy

0.05%+2dgt

Thermocouple

Range

E(-200.0°C1000.0°C)K(-200.0°C1370.0°C)

J(-200.0°C1200.0°C)T(-200.0°C400.0°C)

N(-200.0°C1300.0°C)R(-40°C1760°C)

S(-20°C1760°C)     B(400°C1800°C)

Resolution

0.1°C1°C(R/S/B)

Basic accuracy

0.05%

The reference junction   compensation

RTD

Range

Cu10(-10.0°C250.0°C)Cu50(-50.0°C150.0°C)

Pt10(-200.0°C850.0°C)Pt100(-200.0°C850.0°C)

Pt200(-200°C630°C)Pt500(-200°C630°C)

Pt1000(-200.0°C630.0°C)

Resolution

0.1°C

Basic accuracy

0.05%

GENERAL FEATURES

Power Supply

LR6(/. Five)   x2

Size

180×90×52(mm),   400g

ORDERING   INFORMATION

Accessories

Test   leads

Battery
